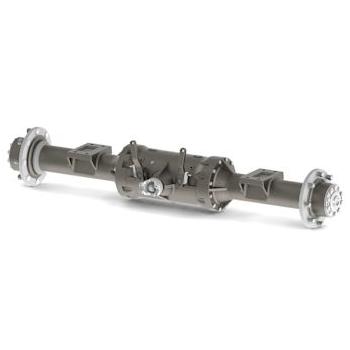

615 Series Axle

615 Series axle has been designed and developed specifically to withstand the punishment encountered by equipment used for off-highway vehicle operations.

Overall Axle Ratio
12.3:1, 14.8:1, 15.8:1

Maximum Load Rating
7400 kg (16314 lb) based on 1840 mm wheel track and axle mountings at 1120 mm centres.

Torque
Nominal output torque at both wheels is 21778 Nm (16060 lbf.ft.).

Brakes
The standard brake has two discs, providing maximum braking torque at both wheels of: 15220 Nm (11200 lbf.ft.), with 4.67:1 planetary reduction unit. 18250 Nm (13430 lbf.ft) with 5.60:1 planetary reduction unit. Hydraulic operating pressure: 60 bar (900psi).

Parkbrake (optional)
Maximum braking torque at both wheels: 16500 Nm (12168 lbf.ft.). Cable pull at axle: 2670 N (600 lbf.), operating at 180 mm centres.

Approximate weight
305 kg (672 lb)

Approximate Oil Capacity
11.4 litres (20.1 pints)

Wheel Fixing Options
8 Studs: M18 thread x 2 mm pitch on 275 mm PCD, with 220 mm wheel spigot diameter 8 Studs: 7/8" BSF on 275 mm PCD, with 220 mm wheel spigot diameter.

Mounting Options
4 off 18 mm diameter holes: 176 mm by 70 mm hole centres, on rigid mounting pads, with 1060 mm mounting centres. 2 off 27 mm diameter holes: 266 mm hole centres on rigid mounting pads, with 1250 mm mounting centres.
