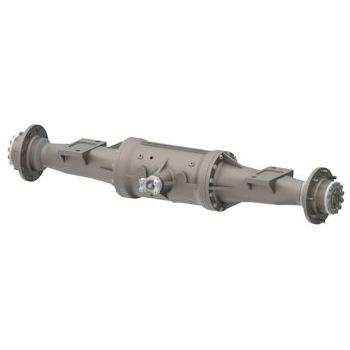

915 Series Axle

The 915 series axle is our largest off highway axle. Its robust structure is designed to allow it to deal with loads upto 10 Tonnes.

Overall Axle Ratio
15.8:1

Maximum Load Rating
10000 kg (22046 lb) based on 1840 mm wheel track and axle mountings at 1120 mm centres.

Torque
Nominal output torque at both wheels is 32373 Nm (23874 lbf.ft.).

Brakes
The standard brake has two discs, providing maximum braking torque at both wheels of: 28792 Nm (21233 lbf.ft.). Hydraulic operating pressure: 60 bar (900psi).

Parkbrake (optional)
Maximum braking torque at both wheels: 23600 Nm (17404 lbf.ft.). Cable pull at axle: 2670 N (600 lbf.), operating at 180 mm centres.

Approximate weight
405 kg (893 lb)

Approximate Oil Capacity
15 litres (26.4 pints)

Wheel Fixing Options
8 Studs: M18 thread x 2 mm pitch on 275 mm PCD, with 220 mm wheel spigot diameter 8 Studs: 7/8" BSF on 275 mm PCD, with 220 mm wheel spigot diameter.

Mounting Options
2 off 27 mm diameter holes: 266 mm hole centres on rigid mounting pads, with 1250 mm mounting centres. 2 off 27 mm diameter holes: 190 mm hole centres on rigid mounting pads, with 1120 mm mounting centres.
